Fire Rated Horizontally Sliding Roller Shutter
Type: Fire Rated Shutters (without insulation)
Test in accordance with BS 476: Part 22: Clause 8, 1987, to give 4 hours fire rating.
and Tested in accordance with ASTM E119-2008a, to give 2 hours fire rating.
| Performance | With 2 & 4 hours fire rating |
|
Materials |
Stainless steel SUS 316 & SUS 304, hot dip galvanized mild steel or combination of GMS and stainless steel. |
|
Sizes |
To suit opening up to 18000 mm width x 7000 mm height. Individual assessment for larger sizes. |
|
Operation |
Operated by self weight sliding down or electric motor driven. Control systems ensure shutters close when fire signal is received. |

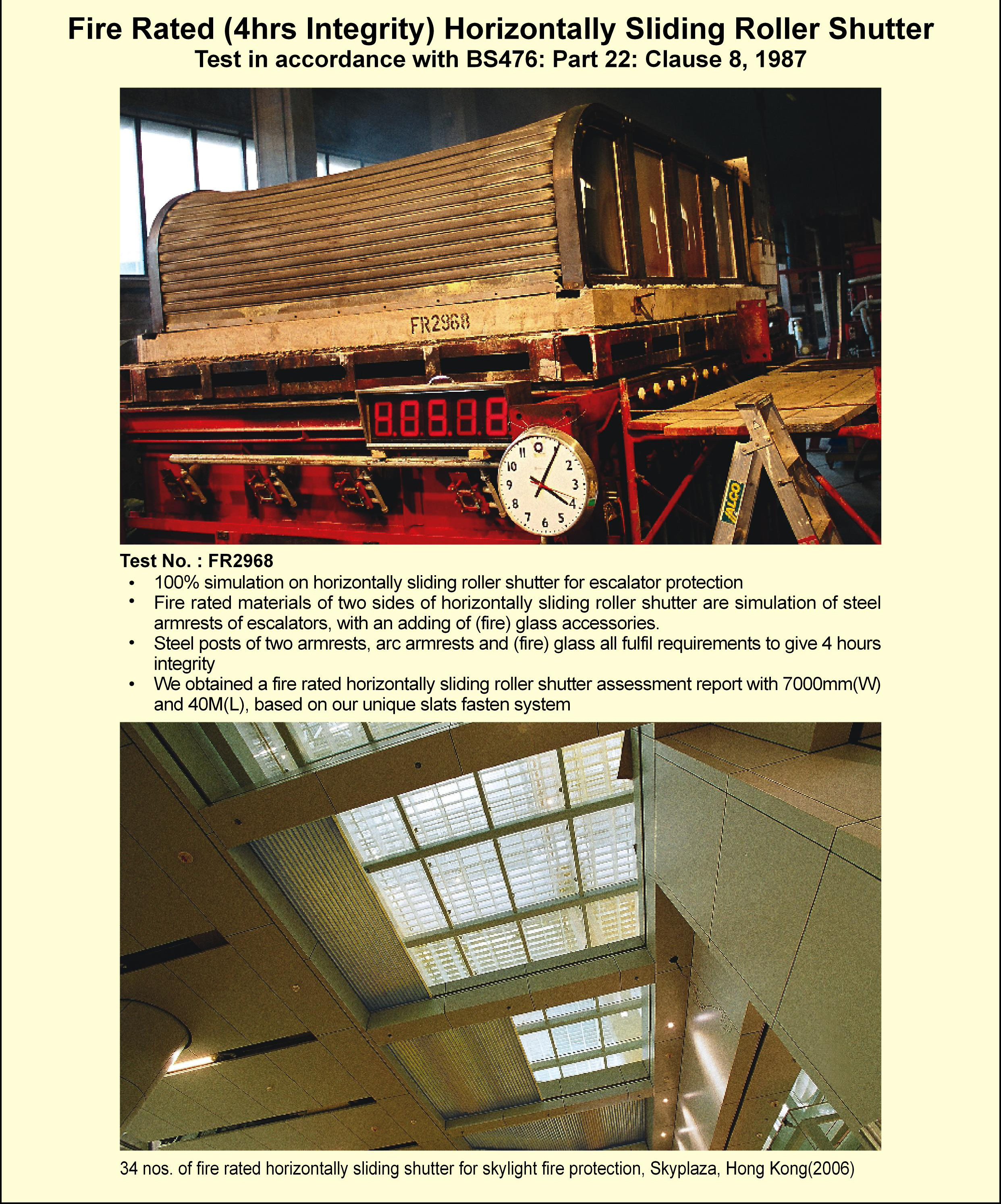

Picture 1) 34 nos. fire rated horizontally sliding shutter for skylight fire protection, Skyplaza, Hong Kong International Airport (2006)
Picture 2) 3240 mm (W) x 7800 mm (L) horizontally sliding shutter for escalator fire protection at Paradise Mall, Heng Fa Tsuen (2005)
Picture 3) 7000mm (W) x 9000mm (L) Fire Rated Horizontal Sliding Roller Shutters at Ponte 16,, Macau (2007)
